SHORING TG 60
SHORING FRAME TG 60 – EVEN MORE POSSIBILITIES FOR ALLROUND SCAFFOLDING.
Allround Shoring TG 60 permits the ingeniously easy, fast, flexible and safer assembly of shoring towers. Because all the shoring frames are symmetrical, no diagonal bracing has to be used during assembly. Allround Shoring TG 60 can transmit loads of up to 6 t per standard.
The structural analysis of Allround Shoring TG 60 complies with DIN EN 12812.
It can be easily adapted to the standard dimensions of the formwork by means of various Allround ledgers measuring between 1.09 m and 3.07 m and the corresponding diagonal braces.
Allround Shoring TG 60 possesses automatically integrated advance side protection. This means that safer and upright assembly is possible without any further accessories.
ALLROUND SHORING TG 60 OVERVIEW
Layher Allround Shoring TG 60 is a high-capacity modular shoring system designed for demanding load-bearing applications in construction and infrastructure projects. It provides reliable support for formwork, slabs, and structural elements where stability and strength are critical.
Built on the proven Allround system, TG 60 offers flexible configurations, efficient assembly, and consistent load transfer across complex jobsite conditions. Its modular design allows for scalable solutions that adapt to varying heights, loads, and structural requirements.
The system adapts efficiently to a wide range of project requirements.
ALLROUND SHORING TG 60 FUNCTION
The Allround Shoring TG 60 system is engineered to deliver stable and efficient load-bearing support for temporary and permanent construction applications.
The system supports:
- High-capacity load transfer for heavy structural loads
- Stable shoring for slabs, beams, and formwork systems
- Flexible configurations for varying heights and load conditions
- Efficient assembly using modular Allround components
- Integration with Layher scaffolding and access systems
ALLROUND SHORING FRAME TG 60
The Allround Shoring Frames TG 60 have been developed based on Allround Scaffolding. They are manufactured from high-strength steel scaffolding tube, stiffened using two diagonal braces and a maximum weight of 18 kg. Each standard can bear a load of up to 6t.
H = 0.71 m
as initial frame
H = 1.00 m
as frame in central tower area
H = 0.50 m
as end frame or equalizing frame
Our well-qualified Layher applications engineers devote themselves to your specific requirements, finding solutions for you that deliver the right results at the right price. You also have access to extensive technical documentation, consisting of material requirements tables, assembly drawings, verified structural analyses as per DIN EN 12812, and dimensioning aids for formwork supports.
System Advantages
Flexible Bay Length Configuration
The system adapts to different formwork dimensions and load requirements using variable ledger and brace lengths while maintaining consistent frame components.
Optimized Material Efficiency
Maximizes load-bearing capacity while reducing material usage, saving time and overall project costs.
Fast Repositioning
Towers can be moved quickly using attached castors, allowing entire tower groups to be repositioned without full dismantling.
High Load-Bearing Performance
Designed to support demanding structural loads in construction and infrastructure projects.
Modular System Design
Compatible with Layher Allround components for flexible configurations across multiple applications.
CRANE POSITIONING AND FLEXIBLE INSTALLATION
The Shoring Tower TG 60 can be assembled horizontally at ground level before being moved into position by crane, or it can be erected vertically. It can be assembled either directly at the place of use or moved into position using easily mountable castors.
The individual shoring frames are secured using hinged pins in order to transmit the tensile forces.
Applications
The Allround Shoring TG 60 system is used in projects requiring high load-bearing support and structural stability across construction and infrastructure environments.
Applications include:
- Heavy-duty shoring for slabs and structural elements

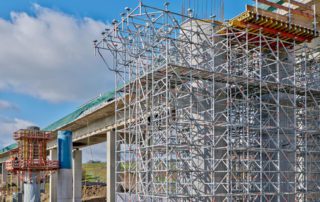

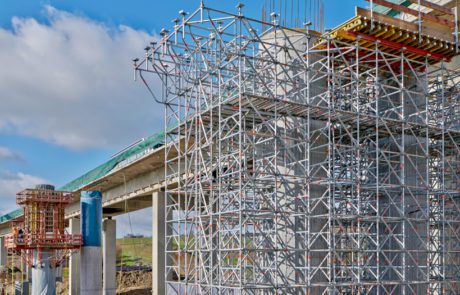

- Bridge and infrastructure construction projects
- Industrial load-bearing support systems
- High-rise and complex structural applications
- Projects requiring high load capacity and stability
ALLROUND SHORING TG 60 FAQS
LAYPLAN CLASSIC AND LAYPLAN CAD
Time and material are crucial factors in scaffolding construction. To make the most efficient use of both, the Layher range includes the integrated software solution LayPLAN SUITE. Several software packages are on offer for different requirements: LayPLAN CLASSIC, LayPLAN CAD.
