ALLROUND FW ROOF

Layher’s Protective Systems meet today’s stringent requirements in terms of environmental protection, noise prevention, weather protection and pedestrian safety and, high material availability and a reliable delivery capacity as usual for layher.

With just three additional components to Allround Scaffolding, there is now an even better and even more economical solution for bridging and bracing applications: the Allround FW System. Consisting of an Allround FW System post, a sturdy Allround FW System chord as the top and bottom chord, plus length-adjustable Allround FW System diagonal rod, this new product can be quickly assembled with pin connections. Lateral bracing is achieved using standard parts from the proven Allround Scaffolding. A contribution to the high load-bearing capacity of the new product is made by the use of strong steel grades and the design height of the Allround FW System, and also by its installation in the Allround system standard dimension without any lateral offset. This ensures a structurally advantageous central force transmission.

• High load-bearing capacity owing to the structural height and steel material
• Limitless applications as platform, cantilevered beam and by extension with a few components for roof constructions.
• Easy handling by low weight of max. 19kg
• Seamless integration into Allround structures. The components are located on the system axes in all three directions.

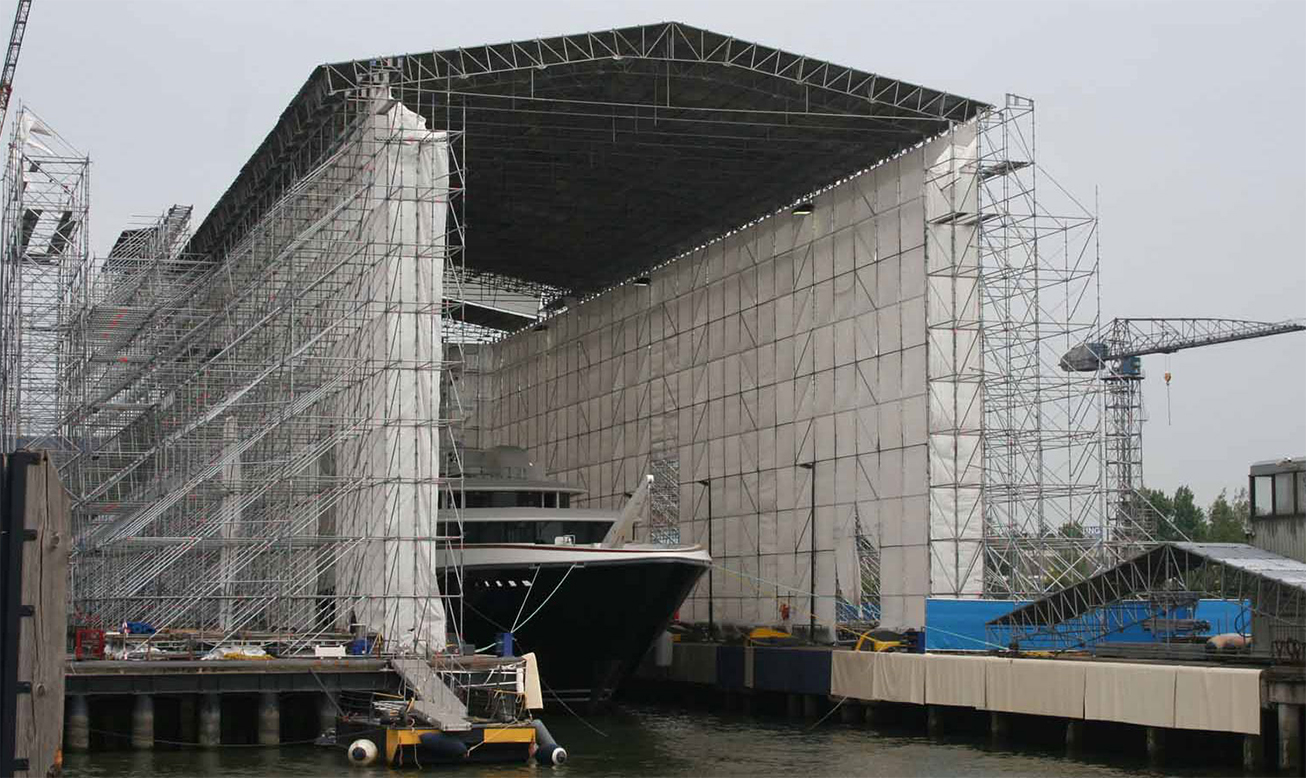

The Allround FW System can also be used for roof structures of temporary weather protection in addition to many solutions, such as bridging or support beams.

With a component weight of under 19 kg, the Allround FW System is exceptionally easy to handle. It can be pre-assembled on the ground and subsequently lifted by crane, or erected in-situ as a cantilevered construction from a secured level. It is suitable for many applications, such as wide-span work platforms, support beams, bridging structures and projections for façade and birdcage scaffolding, and suspended structures for bridge repair work.

YOUR BENEFITS AT A GLANCE

• Limitless applications.
• Seamless integration into Allround Scaffolding as components are positioned on system axes in all three spatial directions.
• Combinable with all components of the Allround system.
• High load-bearing capacity thanks to high structural height and robust individual parts of high-tensile steel.
• Just three supplementary components to the Allround System:
  FW post, FW chord and FW diagonal rod.
• Rapid connection of parts by means of bolts.
• Easy handling thanks to individual parts with a maximum weight of 19 kg.
• Ideal for scaffolding requiring low volumes of material.
